Waterproof Connector Box
View Catalog- Provides reliable protection in outdoor environments
- Suitable for use in high-humidity conditions
- Silicone sealing: Ensures complete waterproof protection with silicone sealing components
- Multiple connection options: Supports 2 to 6 directional connections for diverse electrical systems
JiNH is a specialized manufacturer in the field of electrical and electronic components. We produce a wide range of industrial connectors, terminals, distribution accessories, and parts. Backed by strict quality control, standardized production processes, and automated facilities, we supply high-reliability products and prompt delivery services to customers worldwide.
Specifications – General
| Enclosure Material | Polyamide PA66 |
|---|---|
| Waterproof O-Ring | Silicone |
| Color | Black |
| Protection Rating | IP68 |
| Certification | CE / ROHS |
| Cable Gland OD | 3-6.5mm / 4-8mm / 7-12mm |
| Rated Voltage / Current | 450V AC / 41A |
| Operating Temperature Range | -40℃~85℃ |
Specifications – Product Details
| MODEL | Direction | Product Type | Internal Dimensions (L x W x D / mm) | External Dimensions (A x B x C / mm) |
|---|---|---|---|---|

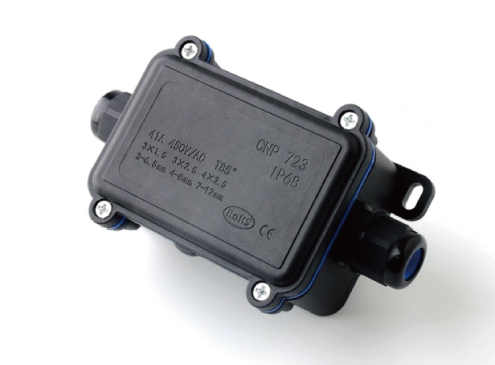

| CNP723-2T | 1 in 1 out |
|
73 x 46 x 34 | 133 x 66 x 41.3 |

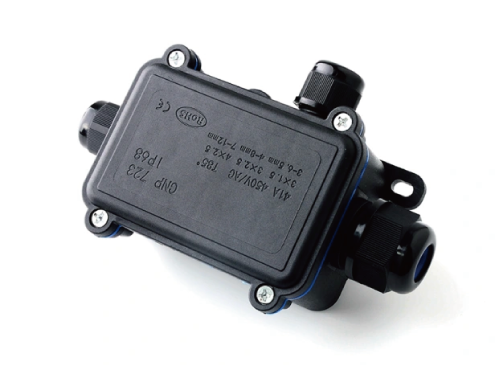

| CNP723-3T | 1 in 2 out |
|
73 x 46 x 34 | 133 x 81 x 41.3 |

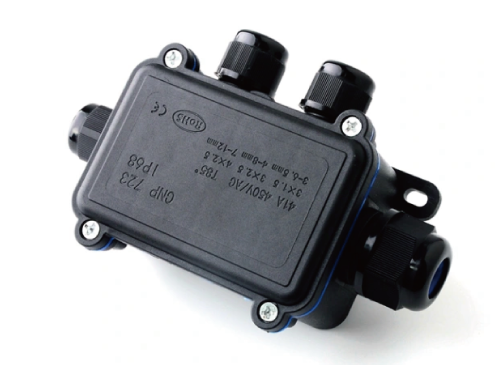

| CNP723-4T-A | 1 in 3 out |
|
73 x 46 x 34 | 133 x 81 x 41.3 |

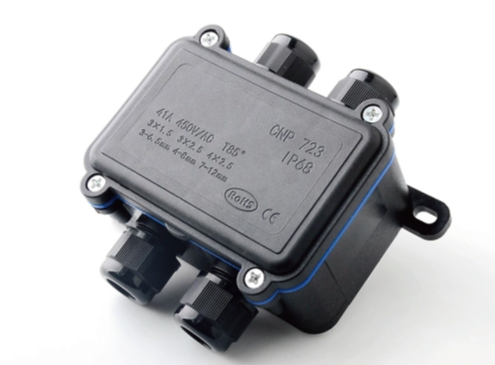

| CNP723-4T-B | 2 in 2 out |
|
73 x 46 x 34 | 109 x 96 x 41.3 |

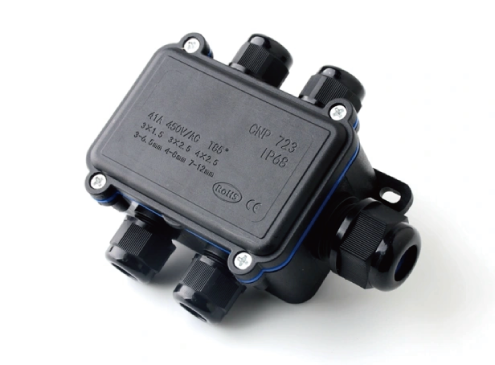

| CNP723-5T | 1 in 4 out |
|
73 x 46 x 34 | 117 x 96 x 41.3 |

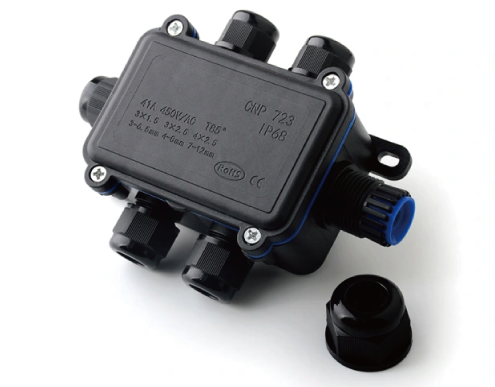

| CNP723-6T | 2 in 4 out |
|
73 x 46 x 34 | 117 x 96 x 41.3 |

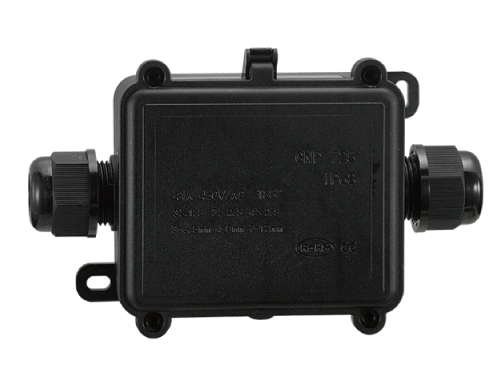

| CNP725-2T | 1 in 1 out |
|
78 x 63 x 34 | 138 x 83 x 41.3 |

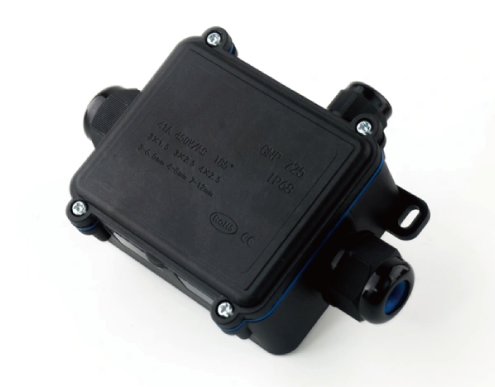

| CNP725-3T | 1 in 2 out |
|
78 x 63 x 34 | 138 x 98 x 41.3 |

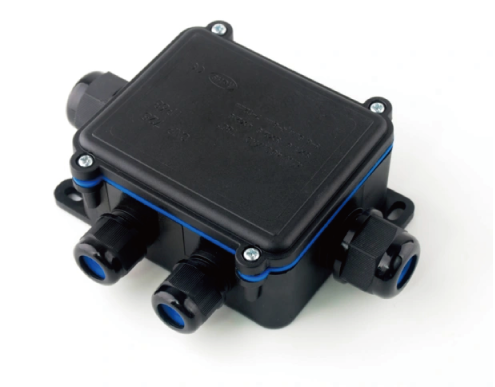

| CNP725-4T-A | 1 in 3 out |
|
78 x 63 x 34 | 138 x 98 x 41.3 |

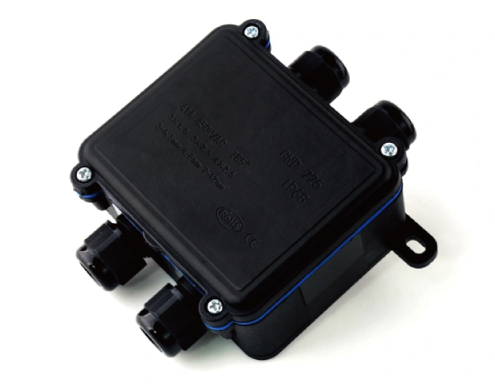

| CNP725-4T-B | 2 in 2 out |
|
78 x 63 x 34 | 103 x 111 x 41.3 |

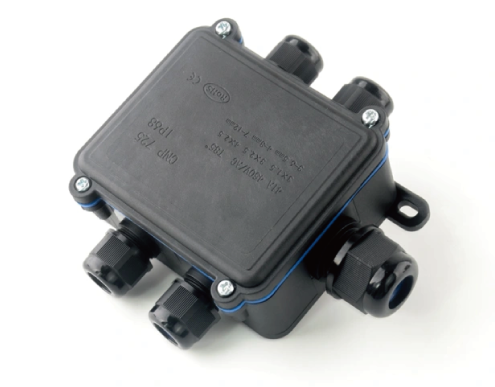

| CNP725-5T | 1 in 4 out |
|
78 x 63 x 34 | 122 x 111 x 41.3 |
| CNP725-6T | 2 in 4 out |
|
78 x 63 x 34 | 138 x 111 x 41.3 |
